Wanner Pumps > Hydra-Cell® Advantages

Technology Advantages

Hydra-Cell Pro® Key Technology Advantages

NO SEALS — NO PACKING

Run dry indefinitely without pump damage
Reduce service and maintenance costs
Handle suspended solids and abrasives up to 800 microns that would destroy other pumps
Pump corrosive, aggressive and high temperature liquids without leak risks
Environmentally friendly
Pump non-lubricating, low viscosity liquids

Learn More

HIGH EFFICIENCY PUMPING ACTION

Low energy consumption
Constant flow rate, independent of pressure
Accurate control of flow rate by RPM over a wide range
Unique check valve design
Ability to handle slurries at 20000 cps
Low shear
Application flexibility

Learn More

ADAPTABILITY

Hydraulic End and Liquid End material choices Including an array of metallic and non-metallic materials
Choices for Diaphragm, Valve and Liquid Head Material – plus Valve Spring, Spring Retainer, O-ring and Valve Seat material options on many models
Numerous options for mountings and baseplate assemblies

Learn More

MULTIPLE DIAPHRAGMS IN A SINGLE PUMP HEAD

Accurate, smooth flow metering and dosing
Compact process pump
Low acceleration head losses
Unique valve design
Extremely low pulse flow; no pulsation dampeners needed in most applications

Learn More

ADVANCED DIAPHRAGM POSITION CONTROL (ADPC)

Patented technology protects the diaphragm from closed suction line
Wide range of suction pressures
Diaphragm leak detection and containment on select models

Learn More

ATEX EXPLOSIVE ZONE CERTIFICATION

Available in select regions on many Hydra-Cell Pro pump models
Pumps are independently assessed and certified by major approval bodies

Learn More

Hydra-Cell Pro® | Pump Series Overview

SEE ALL PUMPS

Hydra-Cell Pro® F/M/D/H & G Series

Seal-less Injection, Transfer & Dosing Pumps

API 674 | API 675

Wanner Hydra-Cell Pro® positive displacement pumps feature a seal-less pumping chamber and hydraulically-balanced diaphragm design, enabling the pumps to provide leak-free, low-maintenance performance while processing difficult fluids over a wide range of pressures and flows.

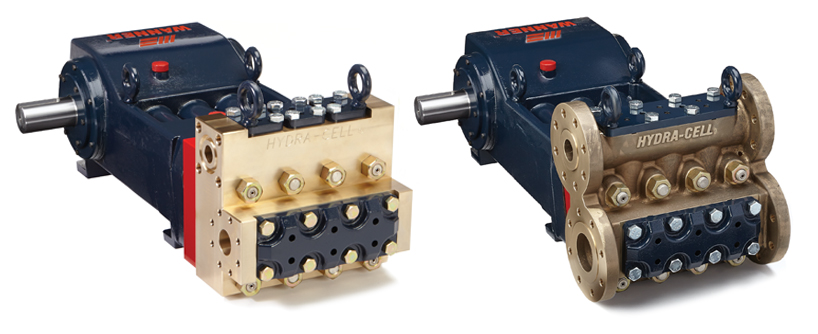

Hydra-Cell Pro® T & Q Series

Seal-less Industrial and Process Pumps

API 674

Wanner Hydra-Cell Pro® Heavy Duty Pumps have proven performance and reliability in some of the toughest industrial equipment and process applications. T & Q Series pumps offer advanced features including diaphragm leak detection and containment, plus in-field serviceability.

Hydra-Cell Pro® P & MT Series

Seal-less Metering & Dosing Pumps

API 675

Wanner Hydra-Cell Pro® metering pumps deliver precise, constant, and virtually pulse-less linear flow with superior levels of accuracy during the entire turndown range. Seal-less design and actuating oil replenishment on every stroke ensures superior accuracy that exceeds the performance demands of API 675.
